Features :
  • High dirt‐holding capacity
  • Good chemical resistance

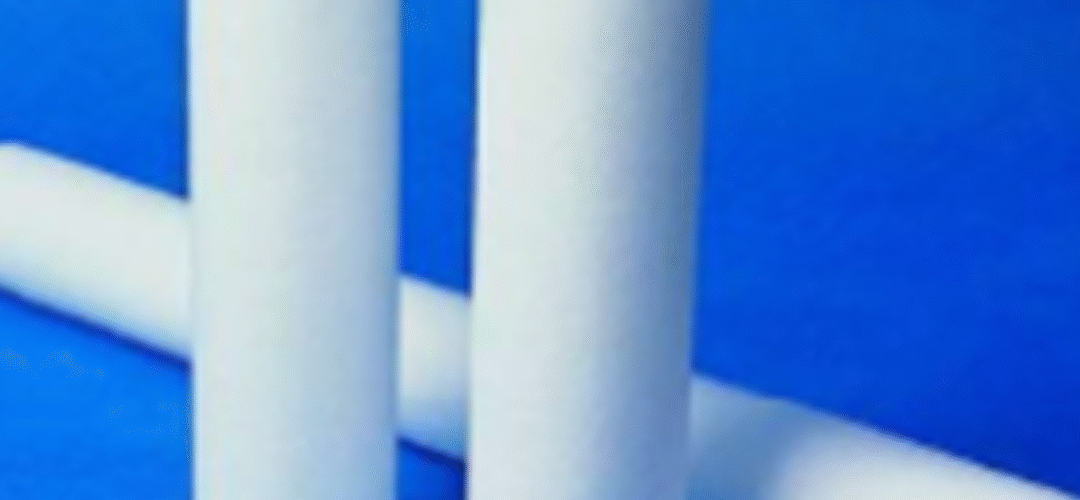

  • 100% Polypropylene
  • Consistent high performance filtration Maximum Operating Temperature : 40ºC
  • Maximum Operating Pressure : 3.2 Kg/cm2
  • • Recommended Replaceable Pressure Drop : 1 Kg/cm2
  • Consistent high performance filtration
  • Drop in flow below 10% of rated flow or increase in
  • Differential Pressure by 1 kg/cm2
Specification :
  • Micron ratings : Nominal ‐ 1 5 10 25 50
  • Length : 10, 20, 30 and 40 inch
  • Inside diameter : 28 mm
  • Outside diameter : 63 mm
  • Outside diameter : 115 mm (for Big Blue)
  • PP cartridges Housing for Big Blue and
  • Normal Cartridges
  • Advanced Melt blown cartridge elements available in spun & wound type
  • Effective for Pre‐treatment in RO for ensuring SDI 15 (min) < 5
